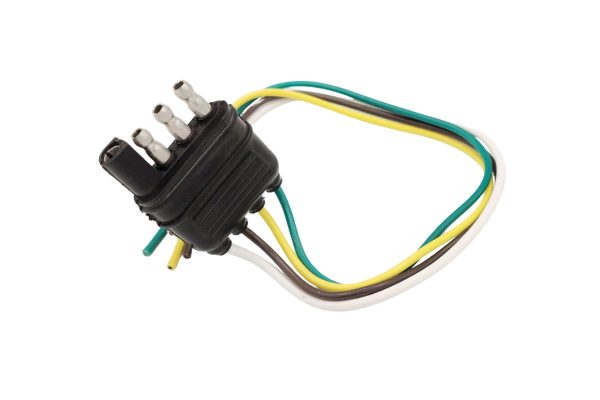

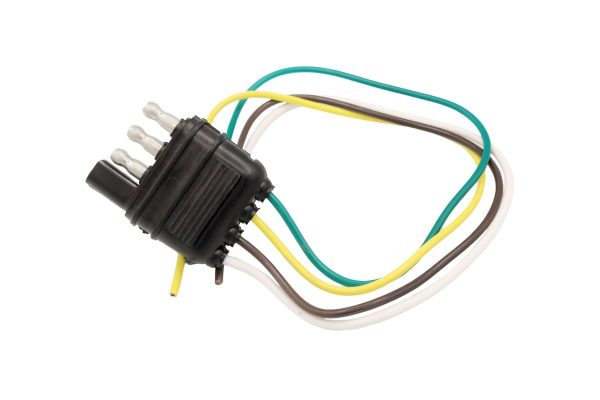

Plug; TE; 4 prong flat; connector w/12in wire

Plug; TE; 4 prong flat; connector w/12in wire
Plug; TE; 4 prong flat; connector w/12in wire
Plug; TE; 4 prong flat; connector w/12in wire - Image 2
Plug; TE; 4 prong flat; connector w/12in wire - Image 3
Plug; TE; 4 prong flat; connector w/12in wire
  • Plug
  • Trailer Side
  • 4 Prong Flat Connector w/12in Wire

Have any questions? Feel Free to Get in Touch

Trailerman Trailers

Customer specification worksheet

Light-Duty Axle Order Form

Leaf spring suspension · 2,000–8,000 lb capacity

01

Customer Information

Tell us who this order is for.

02

Axle Measurements

Use the diagrams to confirm all dimensions.

Axle Type

Brake Flange (Beam & Idler)

03

Axle Configuration

Select the required spindle, brake and hub options.

Bearing Lubrication

Cambered

Spindle Type

Brake Type

Parking Brake

04

Hub & Wheel Details

Choose one option in each applicable group.

Wheel Bolt Pattern

Idler Hub (2K 5 on 4.50)

Stud Size

Pre-wired (standard on electric brake axles)

05

Spring & Finish

Complete the suspension and coating specifications.

Spring Type

Spring Seats

Axle Finish

Please verify before submitting

Axles are built to the specifications supplied on this form. Confirm every dimension, capacity and option before ordering. Compatibility and availability are subject to final technical review.

Wire your trailer with this universal, splice-in wiring plug. Includes 4-way flat connector and 12″ of bonded wire.

Features:
Rubber-molded connector and bonded wire provide maximum durability
Simple installation
Hardwires to existing wiring

Specs:
Application: vehicles with 4 wire lighting systems
Lead length: 12″
Wire gauge: 18

Wire configuration:
Yellow: left turn and brake lights
Green: right turn and brake lights
Brown: tail lights
White: ground
