Hanger; 3 1/4in tall; Tandem Axle

  • Hanger
  • 3-1/4in tall
  • For use w/ Tandem Axle
SKU: 28-5 Category:

Description

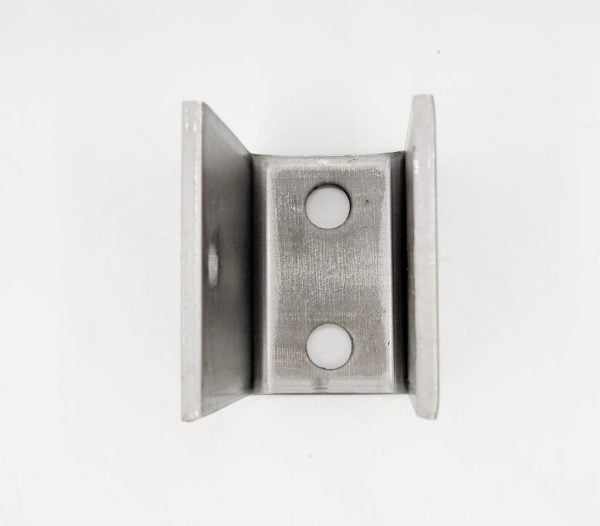

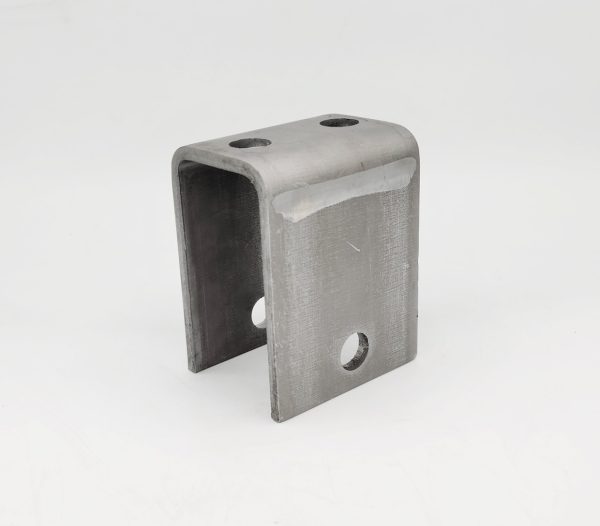

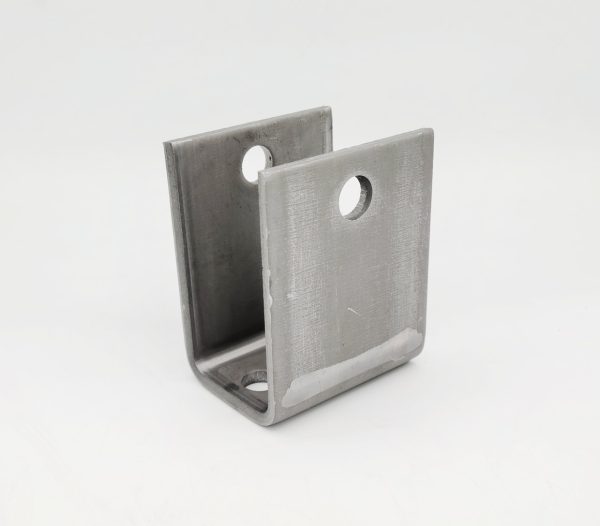

This replacement spring hanger is configured for use as front, center, or rear hanger for single, double or triple-axle applications.
Fits 1-3/4″ wide double-eye springs with 9/16″ diameter eyelets

Specs:
Overall dimensions: 3-7/8″ tall x 3″ deep
Inner width: 1-7/8″ (fit 1-3/4 wide leaf springs)
Height (from top of hanger to center of bolt hole): 3-1/4″

Used in: This is used in hanger kit # APS4(single axle), APS5(single axle), APT5(tandem axle) and APTT5(tripple axle)

Use with: Spring bolt part # 9163B and nut part # 916DLN
Leaf spring part # PR4B and PR5
Bushing # 722106
