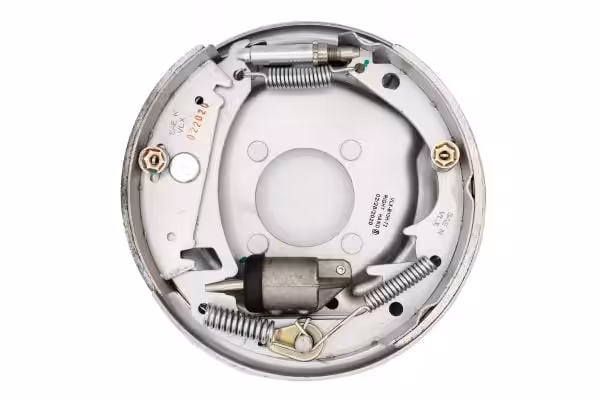

BP; Hydraulic; 10 x 2-1/4in; R/H free backing


  • Brake Backing Plate
  • Hydraulic
  • 3500lb
  • 10in x 2-1/4in
  • R/H
  • Free Backing
SKU: 40715 Category: Product ID: 11514


Hydraulic free backing brakes incorporates a “fall-away” shoe which diminishes shoe drag when backing up. This allows backing up without A: using manuel or electonic lock outs and B: backing up without applying the trailer brakes. These brakes requires periodic manual adjustment.
Marine-grade hydraulic drum brake assembly is great for boat trailers
Designed for use with surge-type trailer brake actuators
Sturdy, corrosion-resistant steel construction

Galvanized backing plate
Stainless steel spring hardware
Plated wheel cylinder
Riveted marine brake shoe

Right hand: Passenger’s side
Dimensions: 10″ diameter x 2-1/4″ wide
Individual brake rating: 1750lbs
Mounting flange bolt pattern: 4 on 4″
Wheel size: 13″ – 15″
Axle rating: up to 3500lbs

Note: This brake assembly is compatible with any surge brake actuator rated for drum brakes (1000PSI rated)
