Jack; Mrine Swivel w/ 8in wheel; 1500

Trailer Jack; Marine;  Swivel w/ 8in wheel; 1500 lb capacity

SKU: TJ-06-06K Category:

Description

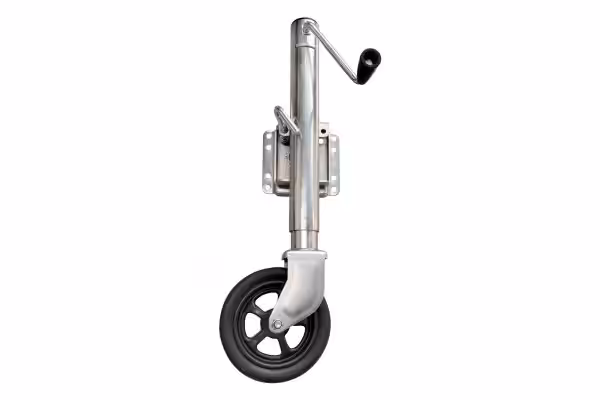

This is a  swivel large wheel Trailer Jack with a capacity of 1500 Pounds. Comes with bolt on mounting plate and hardware. It can be used with to a standard flange with snap ring base. Either bolt on or weld on. Zinc plated for corrosion resistance.  Side wind handle.

Specifications:

Capacity: 1500lbs

Handle Type: Side wind

Mounting style: Comes with Bolt on Plate and hardware.Can be used with weld on flange and snap ring, not included. Snap ring mount diameter 2.5″  and pin size of 1/2″

Bracket height: 13.5″” Retracted from bottom of wheel to center of snap ring plate and 23.5″ fully extended, from bottom of pad to center of snap ring plate

Lift: 10″

Clearance: 12.5″ from center of mounting bracket to top of jack

Wheel size: 8″ x 2″ wheel

Wheel Material: Poly
